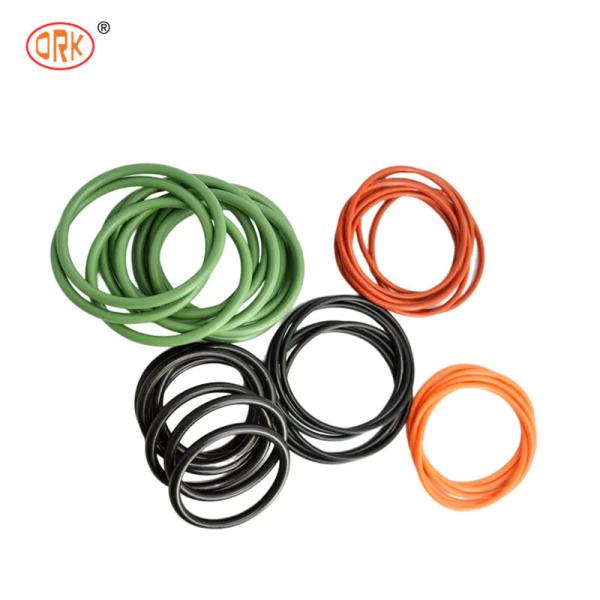

Durable Soft Silicone 3 inch rubber O Ring Seals 70 Shore A
Hardness 10 Years Durability
Introduction for O Rings
An O-ring, also known as a packing, or a toric joint, is a mechanical gasket in the shape of a torus; it is a loop
of elastomer with a round cross-section, designed to be seated in a groove and compressed during
assembly
between two or more parts, creating a seal at the interface.
The O-ring may be used in static applications or in dynamic
applications where there is relative motion between
the parts and the O-ring. Dynamic examples include rotating
pumpshafts and hydraulic cylinder pistons.
O-rings are one of the most common seals used in machine design
because they are inexpensive, easy to make,
reliable, and have simple mounting requirements. They can seal tens
of megapascals (thousands of psi) of pressure.
Function of the rubber o ring
O-Rings are used in sanitary pipeline systems for the Auto,
Machinery, Food, Dairy, Beverage, Pharmaceutical
and Bio-Tech industries. Rubber Fab offers a full line of AS568
dash numbers, metric, and specialty o-ring sizes
that are manufactured using EPDM, NBR, FKM Fluoroelastomer, Buna-N,
PTFE, Silicone and so on.
The o-rings used in cylinder, pump, railcars, truck, washing
machine, instrument and meter, mine equipment,
pipeline, household appliances, automobile, steamboat, industrial
electrical equipment, building door& window,
construction machinery, construction bridges and tunnel.
1. mechanical sealing, pressure vessel ,gas compressor, reaction
vessel ,heat
exchanger, boiler, filter and so on.
2.it can be used for all kinds of electronic products in a wide
range ,such as camera, mobile phone, printer,
computer.
3. Used for automobile windows and doors, etc...
4. Silk screen printing, spray coating, laser etching,
back-lighted, hard/epoxy coating keypads.
O-ring for installation on a variety of machinery and equipment, at
a specified temperature, pressure, and various
liquid and gaseous media, at rest or in motion from the seal. On
the machine, marine, automotive, aerospace
equipment, metallurgical machinery, chemical machinery, engineering
machinery, construction machinery, mining
machinery, petroleum machinery, plastic machinery, agricultural
machinery, and a variety of instruments, a large
number of applications for various types of seals elements. O-ring
is mainly used for static seals and reciprocating
seals. For rotational movement of the seal when limited to
low-speed rotary sealing device. O-ring is usually
installed on the outer or inner circle from the seal section is
rectangular trench. O-ring seals still play a good shock
absorption in oil, acid, wear, erosion and other environmental
chemistry. Therefore, O-ring hydraulic and pneumatic
drive system most widely used a seal .
Features:
1,Oil-resistant, heat resistant
2,Dustproof and water proof
3,Durable
4,Excellent anti-chemical character.
5,Anti- compressibility function is very good.
6,Good ozone resistance ,aging resistance ,high/low temperature
resistance,weather resistance etc.
Application:
Mechanical Sealing, Fixed Sealing, Shaft Sealing, Hole Sealing,
Dust Prevention Sealing, Equipment Sealing, Pump
Sealing, Flange Sealing, Hydro sealing, Junction Surface Sealing
and etc.
| Product Name | Durable Soft Silicone 3 inch rubber O Ring Seals 70 Shore A
Hardness 10 Years Durability |
| Material | NBR Nitrile, FKM FPM, EPDM, SILICONE, FFKM |
| Hardness | 20-90 shore A |
| Size | Standard sizes and custom sizes |
| Color | Black, Brown, Red, Green etc. |
| Delivery time | 7-15 days |
| O RING SIZE IN STOCK |
| Standard | AS568, BS1516, R, JIS B 2401, ISO3601/1, DIN3771/1, GB3452.1,
Metric |
| ID | Min 0.5mm to Max 2000mm are all available
If you need ID more than 2000mm, please contact wiht us, we will
offer for you. |
| Section Cross( thickness ) Of O-Ring(mm) |
| 0.5 | 1.0 | 1.5 | 1.78 | 1.80 | 1.90 | 2.00 |
| 2.40 | 2.50 | 2.62 | 2.65 | 3.00 | 3.10 | 3.50 |
| 3.53 | 3.55 | 4.00 | 4.50 | 5.00 | 5.30 | 5.33 |
| 5.70 | 6.00 | 6.99 | 7.00 | 8.40 | 8.60 | 10.00 |
| 20.00 | 30.00 | Custom | | | | |
| Note: | Besides the above standard size, we also can make other
non-standard size for you based on your requirement. If you need
our complete size catalog, please contact with us. |
| Tolerance(mm) of O Ring |
| C/S ( Thickness) | Tolerance ( ± ) | C/S ( Thickness) | Tolerance ( ± ) | C/S ( Thickness) | Tolerance ( ± ) |
| 0.00-0.179 | 0.07 | 1.80-2.64 | 0.08 | 2.63-3.54 | 0.09 |
| 3.55-5.29 | 0.100 | 5.30-6.99 | 0.13 | 7.00-8.00 | 0.15 |
| 8.01-10.00 | 0.20 | 10.01-15.00 | 0.25 | | |
Silicone Rubber O-Rings (VMQ, PVMQ)
| Material | SIL(Silicone Rubber) |
| Advantage | 1,Excellent Rebound Resistance |
| 2,Excellent Oxygen and Ozone Resistance |
| 3,Excellent Weathering and Heat Resistance |
| 4,Excellent Heat and Low Temperature Resistance |
| 5,Good heat insulation and heat dissipation. |
| 6,Good electrical insulation |
| Disadvantage | 1,Poor Aliphatic-solvent Resistance |
| 2,Poor Alkaline Resistance |
| Temperature | -40℃-220℃, -100℃-250℃(special formula) |
| Application | 1,the household appliances industry seal or rubber parts, such as
electric kettle, electric irons, microwave oven rubber parts. |
| 2,The electronics industry seal or rubber parts, such as mobile
phone keys, shock pad DVD, cable joint seal etc. |
| 3,Contact with the human body on various types of products on the
seal, such as water bottles, water dispensers |
For Silicones the service temperatures are from -60 ℃ to 225 ℃.
Some special types can be used in extreme
temperatures up to 300 ℃ and down to -100 ℃.
Silicone rubber performs well under environmental and temperature
extremes. It is usually applied in automotive
and aerospace industries where flexibility and longevity are
important. It is also a suitable material for parts that
need food grade for food handling equipment and appliances.
Following elastomers can be use in O ring :
* Aflas® or Kalrez®(FFKM)
* Acrylate Rubber(ACM)
* Butyl Rubber(IIR)
* Ethylene-propylene (EPR, EPDM)
* Ethylene Acrylate Rubber(AEM)
* Fluorocarbon (FKM/FPM/FKM)
* Fluorosilicone(FVMQ)
* Hydrogenated Nitrile (HNBR)
* Neoprene Rubber(CR)
* Nitrile Rubber (Buna-N/NBR)
* Natural Rubber(NR)
* Polyurethane(PU)
* Silicone Rubber
* Styrene-butadiene Rubber (SBR)
Our Factory
Rui Chen Sealing Co., Ltd was built in 2006, now there are more
than 200 staff. The company has two branches
in Guangdong and Jiangxi, They are Dongguan Rui Chen Sealing Co.,
Ltd. and Shangrao Rui Chen Sealing Co., Ltd..
In recent years, the company has been supported by ShangRao
municipal government and fully enjoy all the
preferential policies for economic development zone. We will always
take "best quality, best service" as our
mission, and make progress together with you, harmony and mutual
win!
Certificates
1,
IATF16949
2.ISO9001
3.ISO14000
Progress
Cooperative partner
Ruichen company have cooperated with many superior customers as
below , we have complete system and excellent productivity
to serve for you
FAQ
Q: 1 What kinds of materials can you provide?
A: NBR, EPDM, SILICONE,FKM(FKM),NEOPRENE(CR), HNBR ,NR, IIR, SBR,
ACM, AEM,Fluorosilicone(FVMQ),
FFKM etc.
Q: 2 How to select the raw compound for my application?
A: With years of experience working with a variety of material, we
can help select the material that will best suit your
needs while keeping material costs in mind.
Q: 3 How long can we get the quote?
A: If your information is complete, we will provide the quotation
within 8 hours.
Q: 4 Can you provide samples? Is it free or extra?
A: Yes, we can provide samples for free. Freight can be negotiated.
Q: 5 What is the normal lead time for product orders?
A: If the stock generally takes 3-7 days, mold about 15-18 days, no
mold about 25-30 days, depending on the product
situation.
Q: 6 How to check the quality of the bulk order?
A: We have incoming inspection, control the quality of raw
materials, process inspection,to ensure the quality of the
production process, shipping 100% of the full inspection; automatic
inspection machine full inspection, and according
to customer needs before the mass production of pre-production
samples.
Q: 7 What is your standard packing?
A: Plastic bag for inner packing .carton box for outer packing also
be packed according to customer's requirements.
Q: 8 What's the payment term?
A: We accept T/T 30% deposit and 70% balance against copy of B/L or
L/C at sight, Paypal is also accepted.
