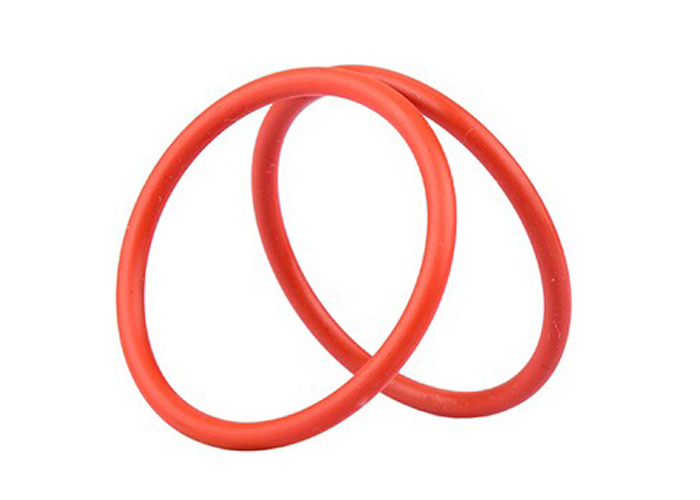

Automotive / Oil Exploration FKM O-Rings Metric Excellent Chemical Resistance

FKM O-RINGS:

O-Rings are available in five different materials from Scientific Instrument Services. Each type has its advantages and disadvantages as listed in the O Ring Comparison Chart. Of the various types of O-Rings available from SIS, FKM® is the most popular for mass spectrometers and other laboratory instruments. This is due to FKM®'s high temperature stability and good resistance to chemicals and ozone. Kalrez® has the same advantages as FKM® but it has greater chemical and temperature resistance. However Kalrez® is considerably more expensive than FKM®. As a class both FKM® and Kalrez® are known as Fluorocarbon Rubber (FKM) type O-rings.

Commercial Trade names for FLUOROCARBON RUBBER (FKM) type O rings

• FKM® * E.I. dupont de Nemours Company
• Fluorel * 3M
• Kalrez® (high temp) * E.I. dupont de Nemours Company
• Kel-F * 3M (formerly Kellogg)

FKM® or fluorocarbon elastomers were first introduced in the mid 1950's. Since then they have become of major importance in the seal industry. Due to its good chemical resistance, high temperature range and its low compression set, fluorocarbon rubber is the most significant single elastomer development in recent history. The working temperature range ifor FKM® is considered to be -15 to +400 degrees F (-29 to +204 degrees C), but it will take temperatures up to 600 degrees F (316 degrees C) for short periods of time. Du Pont's Kalrez® is normally recommended up to 500 degrees F (260 degrees C). On the low end, FKM® compounds have been known to seal at -65 degrees F (-54 degrees C) in some special static applications, however the normal low temperature limit is -15 degrees F (-26 degrees C). Fluorocarbon 0-rings should be considered for seal use in aircraft, automobile, scientific instruments and other mechanical devices requiring maximum resistance to elevated temperature and to many functional fluids. They are widely used in diffusion pumps on vacuum systems and on vacuum flanges on mass spectrometers and electron microscopes. FKM® is recommended for most applications and Kalrez® is only used where the additional temperature range can be justified by the increased cost.

O-Rings are available in sizes (sizes 0, 1, 2 and 3) which correspond to the diameter of the cross section of the O-Ring. Within these groups the O-Rings are classified according to their inside diameter. To see a complete selection of the various sizes and types of O-Rings available from Scientific Instrument Services, just click on the hyperlink on the size list above. If the size you require is not listed, it may still be available

ORK is a leading supplier of FKM® O-rings and custom molded seals. We offer both genuine FKM® and standard fluorocarbon materials for general purpose and high performance applications. Selecting the type of FKM® that best fits your application is important, but it isn't complicated, and help is available from ORK. We also offer gaskets made out of FKM®

Detailed Image:

DONGGUAN RUICHEN SEALING CO., LTD

SHANGRAO RUICHEN SEALING CO.,LTD

      Ruichen Sealing Co., Ltd was built in 2006, The company has two branches in Dongguan and Shangrao.They are Dongguan Ruichen Sealing  Co., Ltd. and Shangrao Ruichen Sealing Co., Ltd.. We mainly produce rubber o rings , gaskets , ball , grommet and customized rubber part. Shangrao Ruichen as production base , covering a total area of 18,000 square meters, with total assets of 100 million yuan, more than 300 employees and 46 sets of plate vulcanizer machines.

Ruichen focus on research and production of rubber seals. At present, we have more than 10,000 sets of molds for O-ring and other seal rings. O-ring sizes include American standard (AS568), Japanese standard (JIS) and GB series. The material meets the requirements of various environmental regulations (ROHS2.0 REACH224 FDA, PAHS, WRC, WARS, VOC, UL), etc. Products are widely used in automotive parts, connectors, electronic products, pumps and valves, pneumatic, power tools, medical instruments and other fields.

Ruichen use ISO9001, IATF16949, ERP, HRP systems to establish and improve the quality management, process management, labor cost control. Ruichen adhering to the "love management, fuhui sustainable (carry forward good moral character, create good quality)" concept, aim to seal industry deep cultivation for a hundred years, to be O-RING KING!
