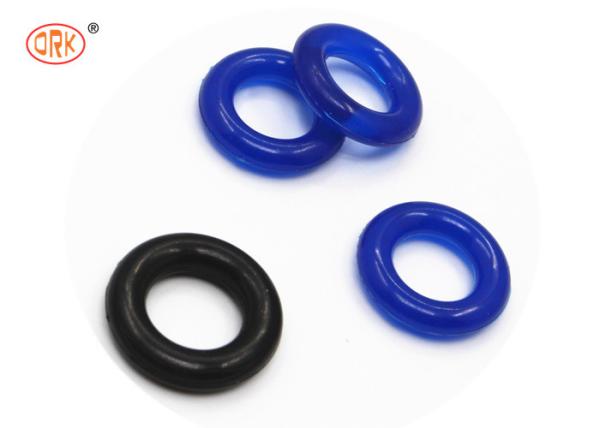

Silicone Shore 40 Sealing Elastic Rubber Lid Seal Soft Silicone O Ring

Silicone O ring Specification

1. Material:Food grade silicone

2. Color: Clear,red,black, brown,green,etc
3. Hardness: 40A

4. Certification: IATF16949, SGS, RoHS,

5. Delivery time: 2-15 workdays after receiving the payment

6. Shipping mode: by air, sea, Express(DHL, TNT, EMS...)

7. Payment: T/T, L/C at sight, Paypal.

8. Free sample:Available

Advantage

1. after modulating formula, the tensile strength up to 1500 psi, and tear resistance up to 88 LBS.
2. Good elasticity and good compression deformation.
3. good resistance to neutral solvent.
4. excellent heat resistance.

Disadvantage:
1. Does not recommend is suitable for most concentrated solvent, oil, concentrated acid after dilute sodium hydroxide
Usage:
Appliance: electric kettle,electric iron,Microwave owen,etc

Keypad,heat shock in DVD,cable connector

Material Description:

• Automotive applications
• Many cooking, baking, and food storage products
• Apparel including undergarments, sportswear, and footwear
• Electronics equipment
• Home repair and hardware
• A host of unseen applications.

Silicone’s temperature tolerance maintains a lack of brittleness below freezing and excellent tolerance of temperatures in excess of 150 °C (302 °F).

Silicone o rings, gaskets and seals are Resistant To: High/Dry Heat, Fungus, Sunlight, Ozone, and Weathering.

Do not use with: Fuels, silicone, and petroleum based oils, acids

Temperature Range: -75^o -/+450^o F / -59.5^o -/+232^o C

Standard Hardness: 70 durometer Shore A

Hardness Range: 30 - 80 Durometer Shore A

Standard Colors: Rust/ Orange.

Also available in Translucent. Custom colors also available.

Trade Names:

• Elastosil . . . Wacker
• Silastic . . . Dow Corning
• Silplus . . . Momentive Performance Materials

ASTM D1418 Designation: MQ, PMQ, VMQ, PVMQ

ASTM D2000/SAE J200 Type, Class: FC, FE, GE

Apple Compound Designation: SL

Standard Color: Red

Key Use(s): Static seals in extreme temperature situations. Seals for medical devices, compatible with FDA regulations.

Temperature Range:
Standard Compound: -40° to +220°C

Hardness (Shore A): 10 to 85

Features: Phenyl (PVMQ) based silicones can perform to -85°F. New polymers can take short term to 600°F.

Limitations: Generally, low abrasion and tear resistance, and high friction characteristics preclude silicones from effectively sealing some dynamic applications. Silicones are also highly permeable to gases and are generally not recommended for exposure to ketones (MEK or concentrated acids.

70 TEST REPORT

Test Requested:As specified by clients,to determine total extractive residues from Rubber articles intended for repeated use in contact with food for compliance with Food and Drug Administration Regulations.

Test Method:With reference to US FDA 21 CFR 177.2600.

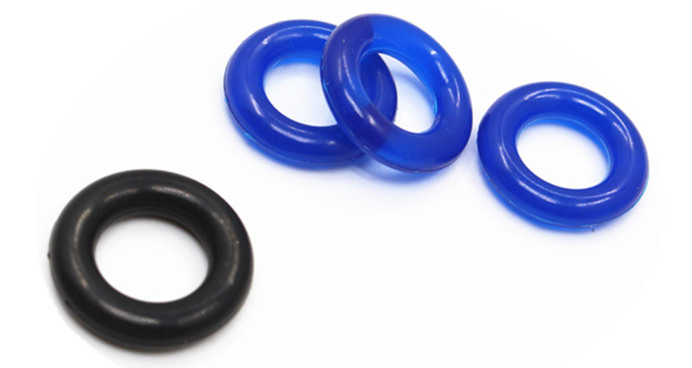

Products Show:

Silicone o-rings are excellent seal materials for static, high temperature applications. Featuring outstanding flex and fatigue life, ozone and UV radiation resistance, physiologically neutral and insulating properties, silicone o-rings are effective in a wide range of applications.

DONGGUAN RUICHEN SEALING CO., LTD

SHANGRAO RUICHEN SEALING CO.,LTD

      Ruichen Sealing Co., Ltd was built in 2006, The company has two branches in Dongguan and Shangrao.They are Dongguan Ruichen Sealing  Co., Ltd. and Shangrao Ruichen Sealing Co., Ltd.. We mainly produce rubber o rings , gaskets , ball , grommet and customized rubber part. Shangrao Ruichen as production base , covering a total area of 18,000 square meters, with total assets of 100 million yuan, more than 300 employees and 46 sets of plate vulcanizer machines.

Ruichen focus on research and production of rubber seals. At present, we have more than 10,000 sets of molds for O-ring and other seal rings. O-ring sizes include American standard (AS568), Japanese standard (JIS) and GB series. The material meets the requirements of various environmental regulations (ROHS2.0 REACH224 FDA, PAHS, WRC, WARS, VOC, UL), etc. Products are widely used in automotive parts, connectors, electronic products, pumps and valves, pneumatic, power tools, medical instruments and other fields.

Ruichen use ISO9001, IATF16949, ERP, HRP systems to establish and improve the quality management, process management, labor cost control. Ruichen adhering to the "love management, fuhui sustainable (carry forward good moral character, create good quality)" concept, aim to seal industry deep cultivation for a hundred years, to be O-RING KING!
