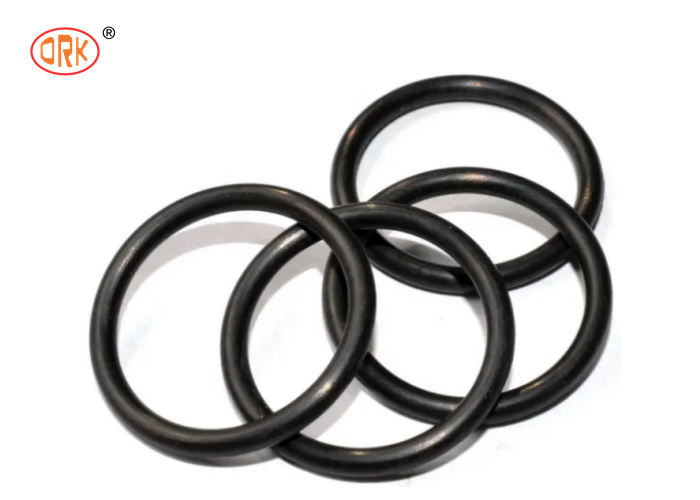

Black Aflas or Kalrez Rings Resistant to Strong Acid and Alkali
FFKM 75 shore A O Ring
Introduction for O Rings
1.The O-ring is an annular seal having an O-shaped cross section,
the size of which
is determined by the inner diameter ID and the wire diameter CS.
2.O-ring size calculation: outer diameter = inner diameter + 2 x
wire diameter
(OD = ID + 2x CS).
3.The purpose of using O-ring seals is to prevent leakage and loss
of liquids or gases.
4.O-rings are the most commonly used type of seal because of their
simplicity, convenience,
and small installation space. As long as the groove design and
material selection are correct,
and the operating conditions are within the temperature range of
the rubber material, the seal
can have a long-term sealing effect in the static or dynamic seal.
Following elastomers can be use in O ring :
* Aflas® or Kalrez®(FFKM)
* Acrylate Rubber(ACM)
* Butyl Rubber(IIR)
* Ethylene-propylene (EPR, EPDM)
* Ethylene Acrylate Rubber(AEM)
* Fluorocarbon (FKM/FPM/FKM)
* Fluorosilicone(FVMQ)
* Hydrogenated Nitrile (HNBR)
* Neoprene Rubber(CR)
* Nitrile Rubber (Buna-N/NBR)
* Natural Rubber(NR)
* Polyurethane(PU)
* Silicone Rubber
* Styrene-butadiene Rubber (SBR)
| Material | Temperature | Characteristics | Application |
| NR | -50~80℃ | Good elasticity, tensile strength, wear resistance | Tires, cushions, seals, cable insulation sleeves |
| NBR | -40~120℃ | Oil resistance, wear resistance, high temperature and aging
resistance | Oil resistant seals, diaphragms, hose and soft tubing |
| SIL/VMQ | -60~250℃ | High and low temperature resistance, non-toxic tasteless, aging
resistance, insulation resistance, good thermal conductivity | Household articles, seals, shock absorbers, electronic accessories |
| EPDM | -40~150℃ | Weather resistance, ozone aging resistance, steam resistance,
strong acid and alkali resistance | Phosphate hydraulic oil system seals, hose and auto parts |
| FKM/FKM | -40~240℃ | High temperature resistance, oil,chemical,aging resistance, good
insulation, flame-retardant, less
breathabilities | Heat and oil resistant sealing parts, rubber hoses |
| SBR | -50~110℃ | The property is close to NR. good wear
and aging resistance. heat resistance is better than NR, but short
service life | Tire, rubber sheet, rubber hose, rubber adhesive tape |
| HNBR | -40~150℃ | Not easy to wear and deform, oil resistance | Aerospace, automobile, oilfield drilling, petrochemical, textile
and printing |
| CR | -40~120℃ | Weather and ozone aging resistance, self extinguishing, good
tensile strength, elongation and elasticity, good adhesion
with metal and fabric | Sealing ring, rubber tube, coating, wire insulation layer, adhesive
tape and prepared adhesive |
| FVMQ | -40~177℃ -40~232℃( Dry environment) | Resistant to strong acid, high and low temperature, oil, high
pressure and aging | Mechanical seal, petroleum industry, chemical industry, building
materials |
| FFKM | 250℃(regular) 320-330℃ (formula) | Good performance, used in harsh environments, resistant to various
solvents, strong acid and alkali, and good elasticity | High quality and expensive seal rings. |
| PU | -40~90℃ | Not easy to wear, withstand high pressure, not easy to aging and
hydrolysis | Building, automobile, aviation industry, thermal insulation,
household goods, household appliances |
| | | |
We can make 30~90 shore A for hardness
FFKM Rubber Material
Our Factory
Rui Chen Sealing Co., Ltd was built in 2006, now there are more
than 200 staff. The company has two branches
in Guangdong and Jiangxi, They are Dongguan Rui Chen Sealing Co.,
Ltd. and Shangrao Rui Chen Sealing Co., Ltd..
In recent years, the company has been supported by ShangRao
municipal government and fully enjoy all the
preferential policies for economic development zone. We will always
take "best quality, best service" as our
mission, and make progress together with you, harmony and mutual
win!
Certificates
1,
IATF16949
2.ISO9001
3.ISO14000
Quality control
Material Inspection:Storage of all raw materials before the test, and issue a report on
the corresponding
material properties, compared with raw material's own property
report, two reports property values
is consistent, can put in storage.
Model Inspection:After the mold development or mold cleaning finished on the
machine, we will test
all the specifications of the mold to ensure that each cavity of
the product specifications and quality.
Production Inspection:The production process of the product inspection personnel timing
semi-finished
product inspection, ensure the quality of the rationality of
technology, defective rate control in a reasonable
range.
Quanlity Control:The quality inspection department will conduct a sampling
inspection of each batch of
products
Production Full Inspection:The optical inspection machine can ensure the appearance and
dimension
of the product are 100% qualified.
Progress
FAQ
Q: 1 What kinds of materials can you provide?
A: NBR, EPDM, SILICONE,FKM(FKM),NEOPRENE(CR), HNBR ,NR, IIR, SBR,
ACM, AEM,Fluorosilicone(FVMQ),
FFKM etc.
Q: 2 How to select the raw compound for my application?
A: With years of experience working with a variety of material, we
can help select the material that will best suit your
needs while keeping material costs in mind.
Q: 3 How long can we get the quote?
A: If your information is complete, we will provide the quotation
within 8 hours.
Q: 4 Can you provide samples? Is it free or extra?
A: Yes, we can provide samples for free. Freight can be negotiated.
Q: 5 What is the normal lead time for product orders?
A: If the stock generally takes 3-7 days, mold about 15-18 days, no
mold about 25-30 days, depending on the product
situation.
Q: 6 How to check the quality of the bulk order?
A: We have incoming inspection, control the quality of raw
materials, process inspection,to ensure the quality of the
production process, shipping 100% of the full inspection; automatic
inspection machine full inspection, and according
to customer needs before the mass production of pre-production
samples.
Q: 7 What is your standard packing?
A: Plastic bag for inner packing .carton box for outer packing also
be packed according to customer's requirements.
Q: 8 What's the payment term?
A: We accept T/T 30% deposit and 70% balance against copy of B/L or
L/C at sight, Paypal is also accepted.
