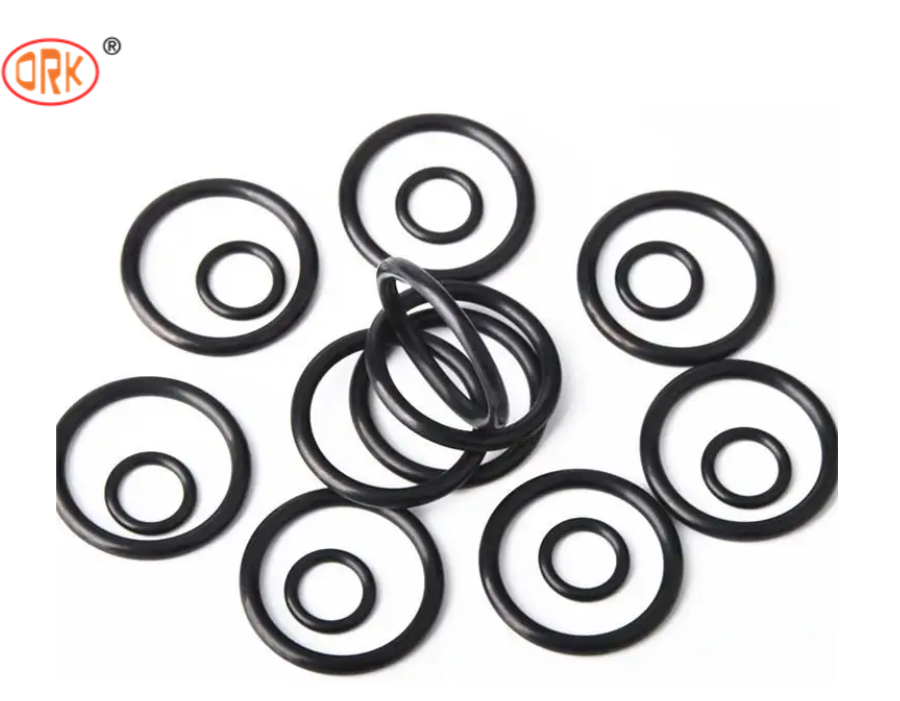

Black Excellent Abrasion Resistance NR Nature O Ring Rubber for
Injectors
What is O Seal ring ?
O-ring advantage:
O-rings have the following advantages compared to other types of
seals:
-- Suitable for a variety of sealing forms: static seal, dynamic
seal
Suitable for a variety of materials, sizes and grooves have been
standardized, interchangeable
- Suitable for a variety of sports: rotary motion, axial
reciprocating motion or combined motion
(such as rotary reciprocating combined motion)
- Suitable for many different sealing media: oil, water, gas,
chemical media or other mixed media
Effective sealing of oil, water, air, gas and various chemical
media through the selection of
suitable rubber materials and appropriate formulation design. The
temperature range is wide
(-60 ° C ~ +220 ° C), the pressure can be up to 1500Kg / cm2 when
used in fixed use (combined
with the reinforcing ring).
--Simple design, compact structure, easy to assemble and
disassemble
The O-ring cross-section structure is extremely simple, and has a
self-sealing effect, and the sealing
performance is reliable.
Since the O-ring itself and the mounting structure are extremely
simple and standardized, installation
and replacement are very easy.
--More varieties of materials
Can be selected according to different fluids: nitrile rubber
(NBR), fluororubber (FKM), silicone
rubber (VMQ), ethylene propylene rubber (EPDM), neoprene (CR),
butyl rubber (BU), poly
Tetrafluoroethylene (PTFE), natural rubber (NR), etc.
--low cost
--The dynamic friction resistance is relatively small
NR/Nature material
Natural rubber is a high molecular weight polymeric substance with
viscoelastic properties. It
shows all the reactions of an unsaturated polymer and gives
addition compounds with halogens,
ozone, hydrogen chloride and several other reactants that react
with olefins.
An interesting reaction of natural rubber is its combination with
sulfur— known as vulcanisation.
This reaction converts the plastic and viscous nature of raw rubber
into elastic. Vulcanized rubber
will have a very high tensile strength and comparatively low
elongation. Its hardness and abrasion
resistance also will be high when compared to raw rubber. Because
of the unique combination of
these properties, natural rubber finds application in the
manufacture of a variety of products.
The below material table is the contrast for their property .You
can choose as your reuqirements
|
FKM O ring
| Silicone O ring | NBR O ring | HNBR O ring | EPDM O ring | NR O ring | Peoprene O ring |
|---|
Abbreviation
| FKM | silicone | NBR | HNBR | EPDM | NR | Neoprene |
|---|
Durometer(shoreA)
| 60-90 | 30-90 | 20-95 | 50-90 | 30-90 | 20-90 | 20-95 |
|---|
Tensile(P.S.I)
| 500-2000 | 200-1500 | 200-3000 | 2600 | 500-2500 | 500-3500 | 500-3000 |
|---|
Elongation(Max.%)
| 300 | 700 | 600 | 530 | 600 | 700 | 600 |
|---|
Compression set
| good | Good | Good | Excellent | Good | Excellent | Good |
|---|
Resilience-Rebound
| Fair | Good | Good | Excellent | Good | Excellent | Excellent |
|---|
Abrasion Resistance
| Good | Fair to poor | Excellent | Excellent | Good | Excellent | Excellent |
|---|
Tear Resistance
| Good | poor | Good | Excellent | Fair | Excellent | Good |
|---|
Solvent Resistant
| Excellent | poor | Good to excellent | Good | Poor | Poor | Fair |
|---|
Oil Resistant
| Excellent | Fair to poor | Good to excellent | Excellent | Poor | Poor | Fair |
|---|
O Seal Ring Operating Temperature
Application: mainly used in manufacturing and automobile so as to electrolic
aspects with regard to all
kinds of heat-resistant and water-assistant products, such as
rubber hoses and dustproof washer seals, etc.
Our Factory
Rui Chen Sealing Co., Ltd was built in 2006, now there are more
than 200 staff. The company has two branches
in Guangdong and Jiangxi, They are Dongguan Rui Chen Sealing Co.,
Ltd. and Shangrao Rui Chen Sealing Co., Ltd..
In recent years, the company has been supported by ShangRao
municipal government and fully enjoy all the
preferential policies for economic development zone. We will always
take "best quality, best service" as our
mission, and make progress together with you, harmony and mutual
win!
Certificates
1,
IATF16949
2.ISO9001
3.ISO14000
Progress
FAQ
Q: 1 What kinds of materials can you provide?
A: NBR, EPDM, SILICONE,FKM(FKM),NEOPRENE(CR), HNBR ,NR, IIR, SBR,
ACM, AEM,Fluorosilicone(FVMQ),
FFKM etc.
Q: 2 How to select the raw compound for my application?
A: With years of experience working with a variety of material, we
can help select the material that will best suit your
needs while keeping material costs in mind.
Q: 3 How long can we get the quote?
A: If your information is complete, we will provide the quotation
within 8 hours.
Q: 4 Can you provide samples? Is it free or extra?
A: Yes, we can provide samples for free. Freight can be negotiated.
Q: 5 What is the normal lead time for product orders?
A: If the stock generally takes 3-7 days, mold about 15-18 days, no
mold about 25-30 days, depending on the product
situation.
Q: 6 How to check the quality of the bulk order?
A: We have incoming inspection, control the quality of raw
materials, process inspection,to ensure the quality of the
production process, shipping 100% of the full inspection; automatic
inspection machine full inspection, and according
to customer needs before the mass production of pre-production
samples.
Q: 7 What is your standard packing?
A: Plastic bag for inner packing .carton box for outer packing also
be packed according to customer's requirements.
Q: 8 What's the payment term?
A: We accept T/T 30% deposit and 70% balance against copy of B/L or
L/C at sight, Paypal is also accepted.
