As568 Standard PU 90shore Excellent Wear and Abrasion Resistant
Polyurethane O Ring

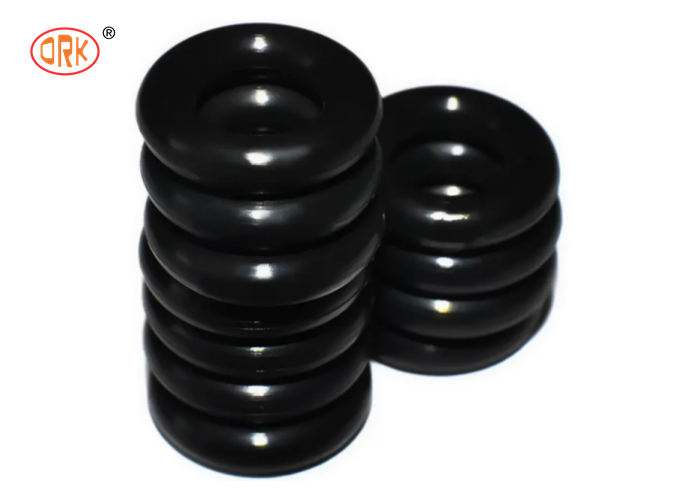

Introduction for O Rings
An o-ring is a simple and versatile ring-shaped packing or sealing
device with a circular cross section (from which the "O" in
its name is derived). The purpose of using O-ring seals is to
prevent leakage and loss of liquids or gases. They simplicity,
convenience, and small installation space. As long as the groove
design and material selection are correct, and the operating
conditions are within the temperature range of the rubber material,
the seal can have a long-term sealing effect in the static
or dynamic seal.
The size of o-ring is determined by the inner diameter ID and the
wire diameter CS. O-ring size calculation:
outer diameter = inner diameter + 2 x wire diameter (OD = ID + 2x
CS).
Material description for Polyurethane/PU Rubber O-Rings
Polyurethane is an organic polymer. Polyurethanes are formed by
reacting a polyol (an alcohol with more than two reactive hydroxyl
groups per molecule) with a diisocyanate or a polymeric isocyanate
in the presence of suitable catalysts and additives. Polyurethane
is a widely used compound due to its superior strength, tear and
abrasion resistance. Polyurethane also provides excellent
permeation
resistance.
Features:
- Good hydraulic oil and gasoline resistance
- Resistant to pure aliphatic hydrocarbons (propane, butane, fuel)
- Resistance to mineral and silicone oils and greases
- Resistant to water, oxygen, ozone and aging
- Excellent tear and abrasion resistance
- Available in multiple types and compounds to meet performance and
cost requirements
Limitations:
- Not compatible with acids, ketones, esters, ethers, alcohols,
glycols
- Hot water, steam, alkalis and amines
Service Temperature:
-65° to 225° F (-54° to 107° C). Depending on compound and
application
Following elastomers can be use in O ring :
* Aflas® or Kalrez®(FFKM)
* Acrylate Rubber(ACM)
* Butyl Rubber(IIR)
* Ethylene-propylene (EPR, EPDM)
* Ethylene Acrylate Rubber(AEM)
* Fluorocarbon (FKM/FPM/FKM)
* Fluorosilicone(FVMQ)
* Hydrogenated Nitrile (HNBR)
* Neoprene Rubber(CR)
* Nitrile Rubber (Buna-N/NBR)
* Natural Rubber(NR)
* Polyurethane(PU)
* Silicone Rubber
* Styrene-butadiene Rubber (SBR)
| Material | Hardness
(Shore A) | Temperature
(ºC) | Main Color | Advantage | Price Level | Shelf Life
(Years) |
| NBR / Nitrile / Buna-N | 60-90 | -40 - 120 | Black | Good oil resistance & low price | Low | 5-10 |
| HNBR / HSN | 60-90 | -40 - 150 | Green | Suitable for the cooling industry | High | 5-10 |
| FKM / FPM / Viton | 70-90 | -20 - 200 | Brown | High-temperature & chemical resistance | High | About 20 |
| EPDM / EPR | 50-90 | -50 - 150 | Black | Excellent weather & ageing resistance | Fair | 5-10 |
| VMQ / Silicone | 40-80 | -70 - 220 | Red | High-temperature & FDA food grade | High | About 20 |
| Neoprene / CR | 50-90 | -40 - 120 | Black | Versatility Properties | Fair | 5-10 |
| FFKM | 70-90 | -10 - 320 | Black | Excellent chemical & high-temperature | Highest | About 20 |
| FVMQ / Fluorosilicone | 40-80 | -60 - 200 | Blue | Wider operating temperature range | High | About 20 |
| Aflas / FEPM | 40-90 | -2 - 230 | Black | Good chemical compatibility | Higher | About 20 |
| PU / polyurethane | 60-90 | -40 - 90 | Natural | High strength and wear resistance | High | About 10 |
| PTFE | 100 | -100 - 280 | White | Good chemical stability | Fair | About 20 |
Our Factory
Rui Chen Sealing Co., Ltd was built in 2006, now there are more
than 200 staff. The company has
two branches in Guangdong
and Jiangxi, They are Dongguan Rui Chen Sealing Co., Ltd. and
Shangrao Rui Chen Sealing Co., Ltd..
In recent years, the company has been supported by ShangRao
municipal government and fully enjoy
all the preferential policies
for economic development zone. We will always take "best quality,
best service" as our mission, and make
progress together with you, harmony and mutual win!
Ruichen always meets our customers' requirements. To make sure we
produce high-quality o-rings, our company implements the
following general standards:
1) Raw material incoming inspection standard ASTM D2000 & HG/T
2579-2008 & HG/T 2811-1996
2) Public o-ring dimensional tolerance GB/T 3452.1-2005
3) N-level specification for o-ring appearance quality inspection
GB/T 3452.2-2007
4) Hardness measurement model Micro O-Ring Testing (Type M system)
5) Hardness using standard ASTM D2240 Rubber Standard Test Method
(Shore A)
6) Sampling inspection specification GB/T2828.1-20
Certificates
1,
IATF16949
2.ISO9001
3.ISO14000
Progress
Cooperative partner
Ruichen company have cooperated with many superior customers as
below , we have complete system and excellent productivity
to serve for you
FAQ
Q: 1 What kinds of materials can you provide?
A: NBR, EPDM, SILICONE,FKM(FKM),NEOPRENE(CR), HNBR ,NR, IIR, SBR,
ACM, AEM,Fluorosilicone(FVMQ),
FFKM etc.
Q: 2 How to select the raw compound for my application?
A: With years of experience working with a variety of material, we
can help select the material that will best suit your
needs while keeping material costs in mind.
Q: 3 How long can we get the quote?
A: If your information is complete, we will provide the quotation
within 8 hours.
Q: 4 Can you provide samples? Is it free or extra?
A: Yes, we can provide samples for free. Freight can be negotiated.
Q: 5 What is the normal lead time for product orders?
A: If the stock generally takes 3-7 days, mold about 15-18 days, no
mold about 25-30 days, depending on the product
situation.
Q: 6 How to check the quality of the bulk order?
A: We have incoming inspection, control the quality of raw
materials, process inspection,to ensure the quality of the
production process, shipping 100% of the full inspection; automatic
inspection machine full inspection, and according
to customer needs before the mass production of pre-production
samples.
Q: 7 What is your standard packing?
A: Plastic bag for inner packing .carton box for outer packing also
be packed according to customer's requirements.
Q: 8 What's the payment term?
A: We accept T/T 30% deposit and 70% balance against copy of B/L or
L/C at sight, Paypal is also accepted.
