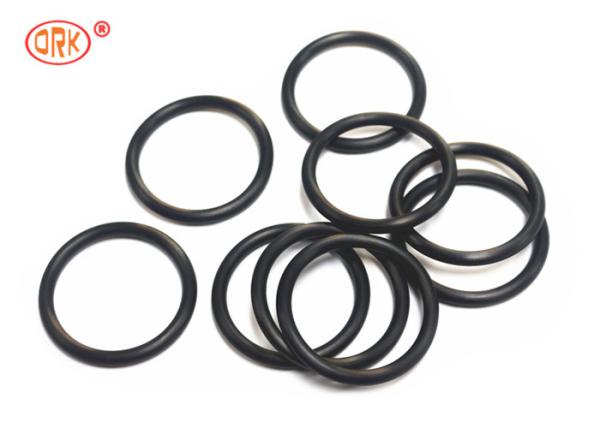

    ORK Round EPDM Rubber O-Ring Material Fuel Resistant 70A Durometer

    Ask Lasest Price
    Brand Name : ORK
    Model Number : Customized
    Certification : FDA,ROHS,ISO9001,TS16949
    Price : 0.01 ~ 2 USD/PCS
    Payment Terms : L/C, L/C,Paypal
    Supply Ability : 30000000 PCS / Month
    Delivery Time : 7-45 work days
    • Product Details
    • Company Profile

    ORK Round EPDM Rubber O-Ring Material Fuel Resistant 70A Durometer

    ORK Round EPDM Rubber O-Ring Material Fuel Resistant 70A Durometer

    Product Features

    • Made of ethylene propylene diene monomer (EPDM) rubber for use with a variety of chemicals and environments
    • Can be used in a wide temperature range from -70 degrees F (-57 degrees C) to 300 degrees F (149 degrees C)
    • Round in cross-section to provide a seal between cylindrical overlapping surfaces
    • Durometer (hardness) of 70A for resistance to penetration
    • Meets standards defined by Aerospace Standard AS568A

    Product Details

    • Shipping Information: View shipping rates and policies
    • Domestic Shipping: Item can be shipped within U.S.
    • International Shipping: This item is not eligible for international shipping. Learn More
    • ASIN: B003SLE5L8
    • Average Customer Review: 4.3 out of 5 stars See all reviews (27 customer reviews)
    • Product Warranty: For warranty information about this product, please click here

    Product Description

    This EPDM O-ring is black in color, round in cross-section, has a durometer of 70A, and is designed for use in a wide variety of sealing applications.

    EPDM is acceptable for temperature applications between -70 degrees F (-57 degrees C) to 300 degrees F (149 degrees C). It is compatible for use with water and steam, silicone oil and grease, polar solvents (alcohols), acids, glycol-based brake fluids, ozone, and weathering. It is vulnerable to many oils, gasoline, and solvents. This material meets ASTM International standards.

    This EPDM O-ring has a shore durometer of 70A. Shore durometer is the hardness of a material, and its resistance to permanent indentation. A higher durometer value indicates greater resistance to indentation on a scale of 0 to 100, with 100 indicating no indentation.

    O-rings commonly provide a pressure and fluid seal between cylindrically shaped, overlapping mating surfaces and are commonly seen in engines, faucets, flanges, valves, and various cylinders. They are circular in shape, with a round cross section and a hole in the center, similar to a doughnut. O-rings are available in various sizes, and can be ordered based on required nominal inside diameter (ID), outer diameter (OD), and cross-sectional (CS) diameter.

    This EPDM O-ring meets standards defined by Aerospace Standard AS568A, which is the Aerospace Size Standard for O-rings.

    Press CurePost Cure
    Sheet : 5min 170℃Sheet : 1 hrs 125℃
    Button : 10 min 170℃Button : 1 hrs 125℃
    ORIGINAL PROPERTIESSPECIFICATIONTEST RESULT
    HARDNESS SHORE A70°±570
    TENSILE STRENGTH, MPA, MIN1414.9
    ULTIMATE ELONGATION, %, MIN300327
    SPECIFIC GRAVITY (g/cm3)1.15
    HEAT RESISTANCE 70 H . AT 100℃
    CHANGE IN HARDNESS, POINTS102
    CHANGE IN TENSILES STRENGTH,%-25-4.1
    ULTIMATE ELONGATION,MAX %-25-3.4
    COMPRESSION SET, MAX, 22H AT 70℃258
    RESISTANCE TO OZONE
    EXPOSURE METHOD BN0 CRACKPASS
    WATER RESISTANCE:100℃,70H (EA14)
    VOLUME CHAGE,%±53.7
    LOW-TEMPERATURE BRITTLENESS NONBRITTLE
    AFTER 3MIN AT -55°C (F19)NONBRITTLEPASS
