High Temperature O Rings Silicone Customized , Waterproof O Rings For Auto Seals

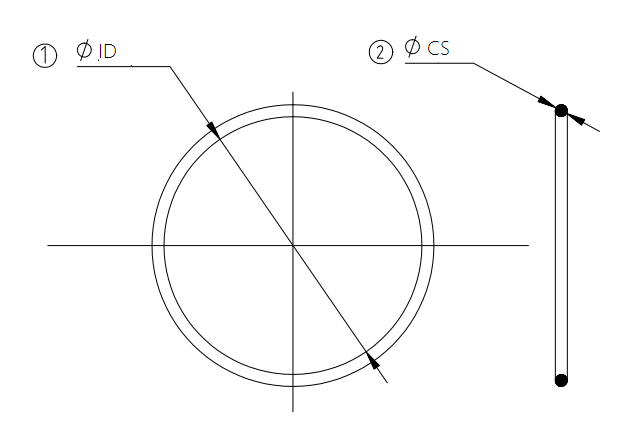

Drawing of O ring:

This drawing will give you a concept of what o ring looks like.

Material Description:

Silicone o rings are widely used in industry and there are multiple formulations. Silicone rubbers are often one or two part polymers, and may contain fillers to improve properties or reduce cost. Silicone rubber is generally non-reactive, stable, and resistant to extreme environments and temperatures from -40 °C to +220 °C while still maintaining its useful properties. Due to these properties and its ease of manufacturing and shaping, silicone rubber is used in silicone gaskets, seals and orings and can be found in a wide variety of products such as:

• Automotive applications
• Many cooking, baking, and food storage products
• Apparel including undergarments, sportswear, and footwear
• Electronics equipment
• Home repair and hardware
• A host of unseen applications.

Silicone’s temperature tolerance maintains a lack of brittleness below freezing and excellent tolerance of temperatures in excess of 150 °C (302 °F).

Silicone o rings, gaskets and seals are Resistant To: High/Dry Heat, Fungus, Sunlight, Ozone, and Weathering.

Do not use with: Fuels, silicone, and petroleum based oils, acids

Temperature Range: -75^o -/+450^o F / -59.5^o -/+232^o C

Standard Hardness: 70 durometer Shore A

Hardness Range: 30 - 80 Durometer Shore A

Standard Colors: Rust/ Orange.

Also available in Translucent. Custom colors also available.

Trade Names:

• Elastosil . . . Wacker
• Silastic . . . Dow Corning
• Silplus . . . Momentive Performance Materials

ASTM D1418 Designation: MQ, PMQ, VMQ, PVMQ

ASTM D2000/SAE J200 Type, Class: FC, FE, GE

Apple Compound Designation: SL

Standard Color: Red

Key Use(s): Static seals in extreme temperature situations. Seals for medical devices, compatible with FDA regulations.

Temperature Range:
Standard Compound: -40° to +220°C

Hardness (Shore A): 10 to 85

Features: Phenyl (PVMQ) based silicones can perform to -85°F. New polymers can take short term to 600°F.

Limitations: Generally, low abrasion and tear resistance, and high friction characteristics preclude silicones from effectively sealing some dynamic applications. Silicones are also highly permeable to gases and are generally not recommended for exposure to ketones (MEK,acetone) or concentrated acids.

70 TEST REPORT

Test Requested:As specified by clients,to determine total extractive residues from Rubber articles intended for repeated use in contact with food for compliance with Food and Drug Administration Regulations.

Test Method:With reference to US FDA 21 CFR 177.2600.

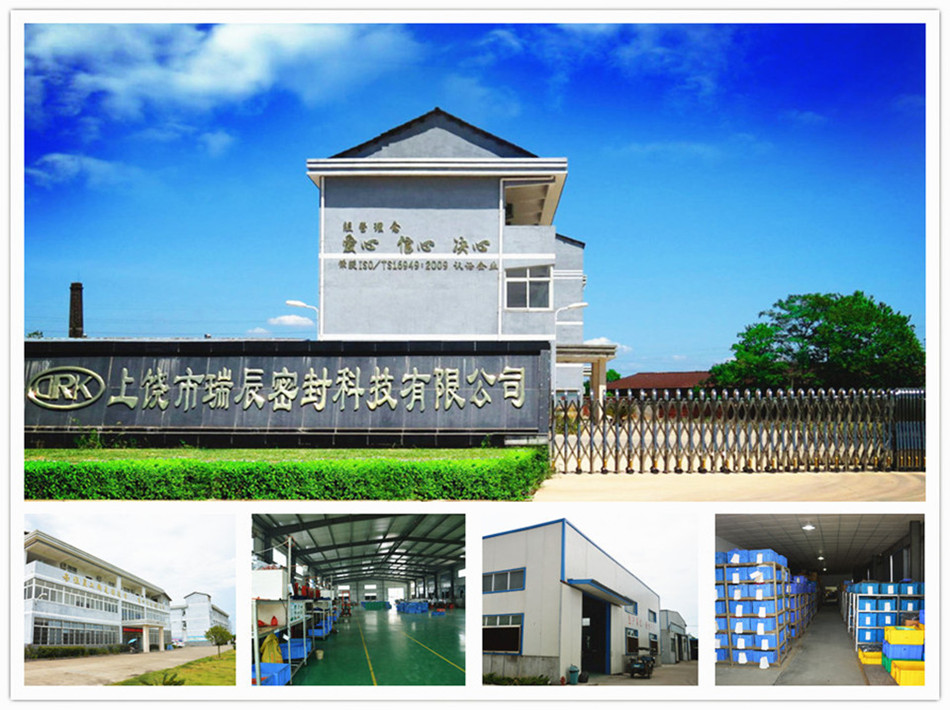

Factory Show:

Rui Chen Sealing Co., Ltd was built in 2006, now there are more than 200 staffs. The company has two branches in Guangdong and Jiangxi, They are Dongguan Rui Chen Sealing Co., Ltd. and Shangrao Rui Chen Sealing Co., Ltd..

Our company aims at meeting the needs of customers, meanwhile, we have good faith, keep a contact and ensure the quality of products. When necessary we will assist customers to do the relevant design (such as mold development), saving resources in the development of new products, shorten the development cycle, reduce the potential failure. So we have won the trust of our customers. Now we have nearly 200 customers who are famous at home and abroad.

CONTACT ME NOW IF YOU NEED OUR PRODUCTS!

DONGGUAN RUICHEN SEALING CO., LTD

SHANGRAO RUICHEN SEALING CO.,LTD

      Ruichen Sealing Co., Ltd was built in 2006, The company has two branches in Dongguan and Shangrao.They are Dongguan Ruichen Sealing  Co., Ltd. and Shangrao Ruichen Sealing Co., Ltd.. We mainly produce rubber o rings , gaskets , ball , grommet and customized rubber part. Shangrao Ruichen as production base , covering a total area of 18,000 square meters, with total assets of 100 million yuan, more than 300 employees and 46 sets of plate vulcanizer machines.

Ruichen focus on research and production of rubber seals. At present, we have more than 10,000 sets of molds for O-ring and other seal rings. O-ring sizes include American standard (AS568), Japanese standard (JIS) and GB series. The material meets the requirements of various environmental regulations (ROHS2.0 REACH224 FDA, PAHS, WRC, WARS, VOC, UL), etc. Products are widely used in automotive parts, connectors, electronic products, pumps and valves, pneumatic, power tools, medical instruments and other fields.

Ruichen use ISO9001, IATF16949, ERP, HRP systems to establish and improve the quality management, process management, labor cost control. Ruichen adhering to the "love management, fuhui sustainable (carry forward good moral character, create good quality)" concept, aim to seal industry deep cultivation for a hundred years, to be O-RING KING!
